How to join two components
Posted 2020年6月21日 GMT+2 11:40Structural & Acoustics, Bioengineering, Modeling Tools & DefinitionsVersion 5.53 Replies
Please login with a confirmed email address before reporting spam
Hello, I have two components, one represents the femur bone and the other an implant. I want to study applied forces to this implant but first i have join these two components in a way that can be seen in the picture. Any ideas on how to do that? ![https://www.sciencephoto.com/media/520505/view/prosthetic-hip-joint-and-gruen-zones]
Please login with a confirmed email address before reporting spam
Margarida,
any two domains sharing a boundary are joined by default as long as you choose the default form union at the end of the geometry sequence.
Cheers Edgar
-------------------Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Please login with a confirmed email address before reporting spam

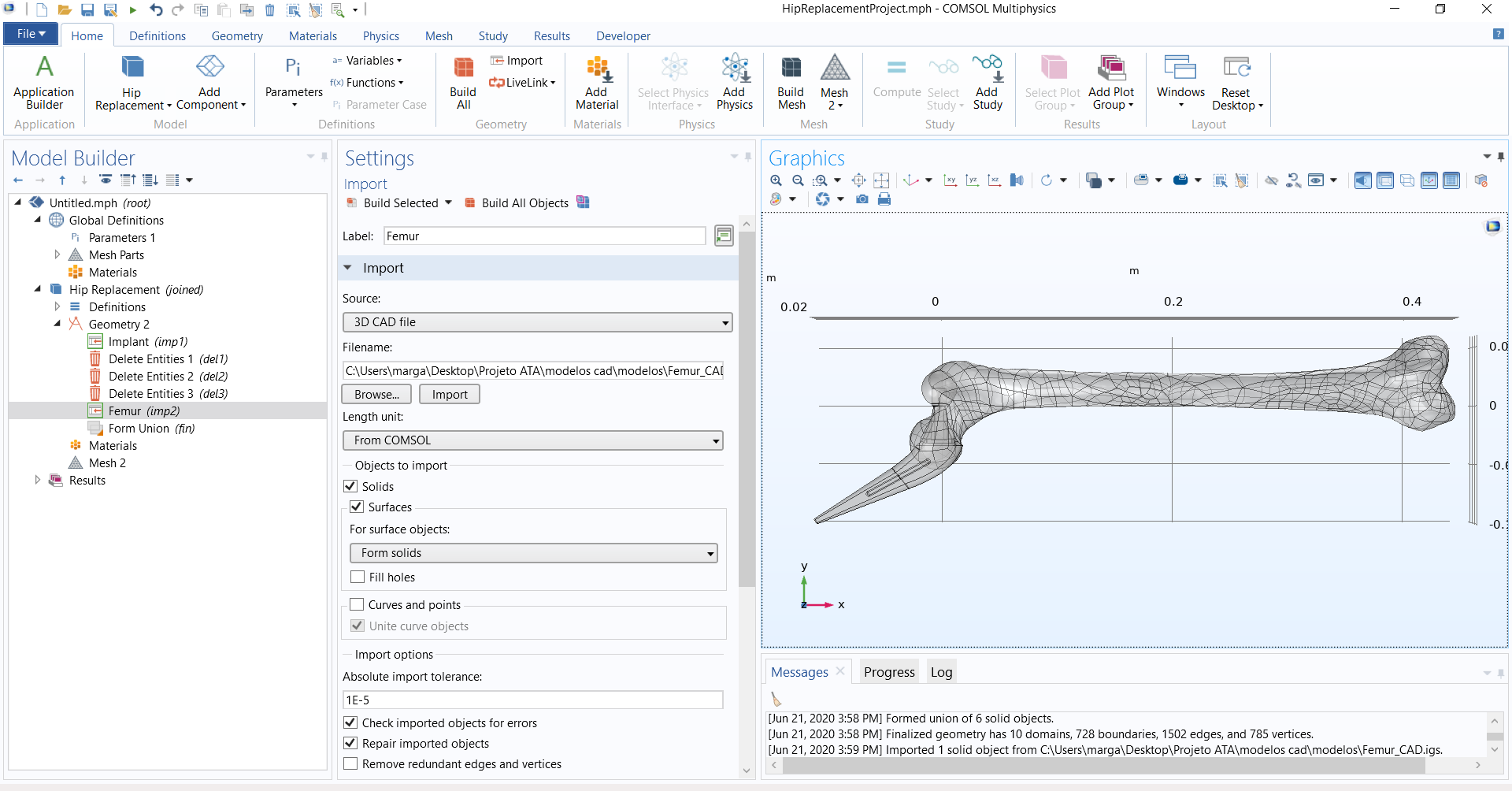

Thank you for your help. I've tried an automatic union but the components don't seem to align in a right way as seen in the picture.
Attachments:
Please login with a confirmed email address before reporting spam
Yes the patient might be a little unhappy with such a result. You can translate and rotate the parts for proper alignment.
