Face in geometry extrusion
Posted 2020年7月21日 GMT+2 17:16MEMS & Nanotechnology, MEMS & Piezoelectric Devices3 Replies
Please login with a confirmed email address before reporting spam
Hello all,

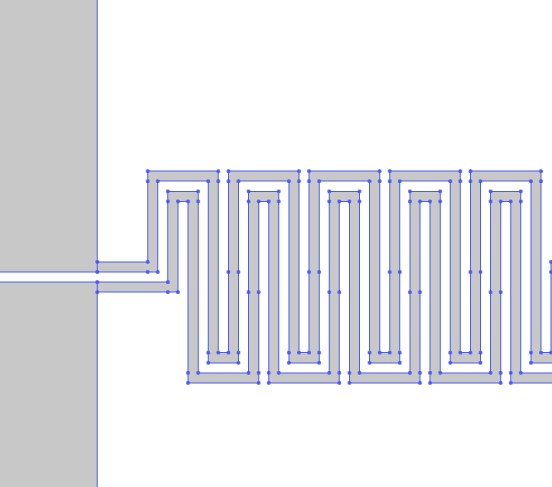

I am using COMSOL 5.4 I've used plane geomtry to create some meander structure and extrude that part. I've used many rectangels and combined it together to form a union.

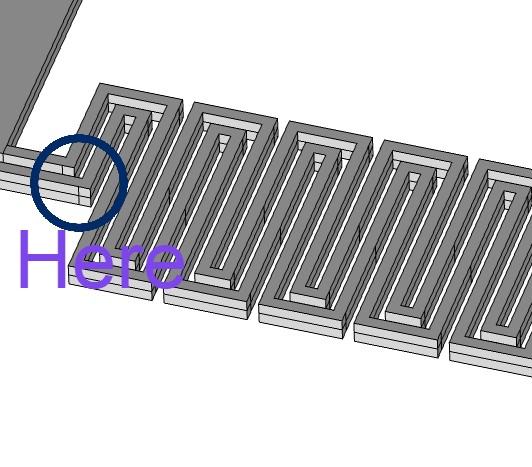

In plane geomtry, i dont see any boundaries as I removed it. But when i extrude the plane, i see faces as shown in the image.
Please let me know what could be the solution.
Regards, GA
Attachments:
Please login with a confirmed email address before reporting spam
Looks like you must remove the points inside the straight lines before extruding. Or construct the meander with a polygon.
-------------------Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Please login with a confirmed email address before reporting spam
Is there any way to remove those points?
I don't see any Union or Conversion options to do that.
I've attached the model in this link (the model is more than 5-MB): https://drive.google.com/file/d/1AIY-FJc3_uztqrbJhTl09hU0ohLHzNke/view?usp=sharing
Regards, GA
Please login with a confirmed email address before reporting spam
Check the 'Remove Entities' function in the geometry menu.
-------------------Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
